Model #F7 PLUS-ANP75-AMC7-FW
Specs
Brightness
1200 nits
Native Resolution
1920 x 1200
Video Input & Output
1x HDMI 2.0 Input1x HDMI 2.0 Output
Display Type
IPS-Type LCD
Display Size
7.0" / 17.8 cm
Aspect Ratio
16:10
Touchscreen
Yes
HDR Support
Yes: Hybrid Log Gamma
Color Support
16.7 Million Colors (8-Bit)
Image Control

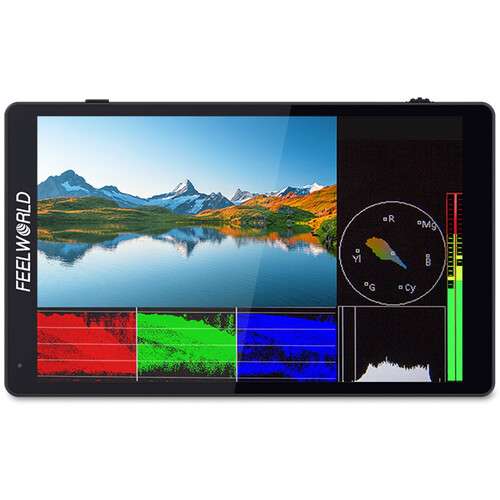

Anamorphic De-Squeeze, Check Field, Customizable Aspect Ratios, False Color, Focus Peaking, Histogram, Image Flip, Image Freeze, Overscan, Screen Markers, Vectorscope, Waveform
Audio Input & Output
1x 1/8" / 3.5 mm Headphone Output
Embedded Audio
HDMI
Video Format
HDMI DCI 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 UHD 4K: 60/59.94/50/48/47.95/30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p 576i 480p 480i
Media Slot
Single Slot: microSD (Unspecified Type, LUT/Firmware Update Only)
Battery Type

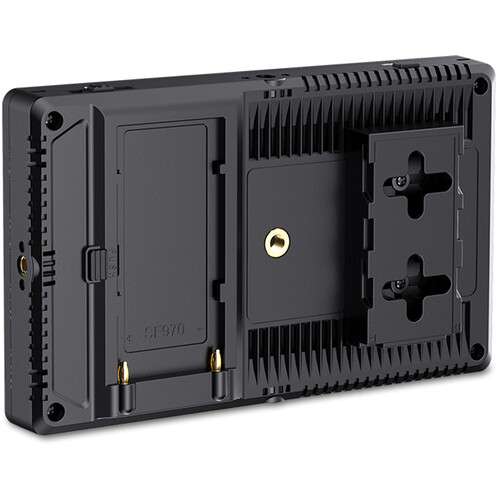

1x L-Series Mount on Fixed Plate
Power Input & Output

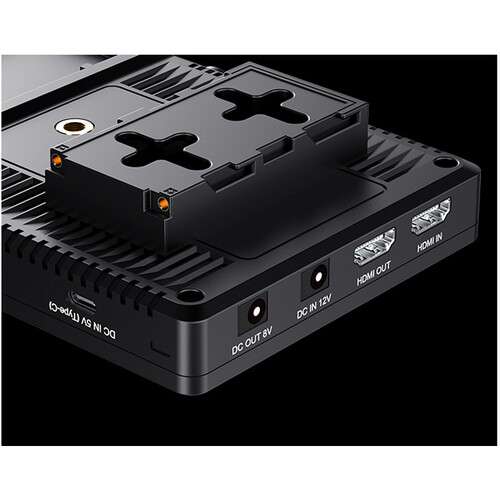

1x Barrel 5.5 mm (12 VDC) Input1x USB-C (5 VDC / 2 A) Input1x Barrel 5.5 mm (8 VDC) Output
Other Input & Output
No
Wi-Fi Compatibility
Bluetooth Compatibility
Input Power
7 - 24 VDC
Dimensions
7.3 x 4.6 x 0.8" / 186 x 117 x 21 mm
Weight
20.9 lb / 9.5 kg
Categories
Monitors
