Introduction

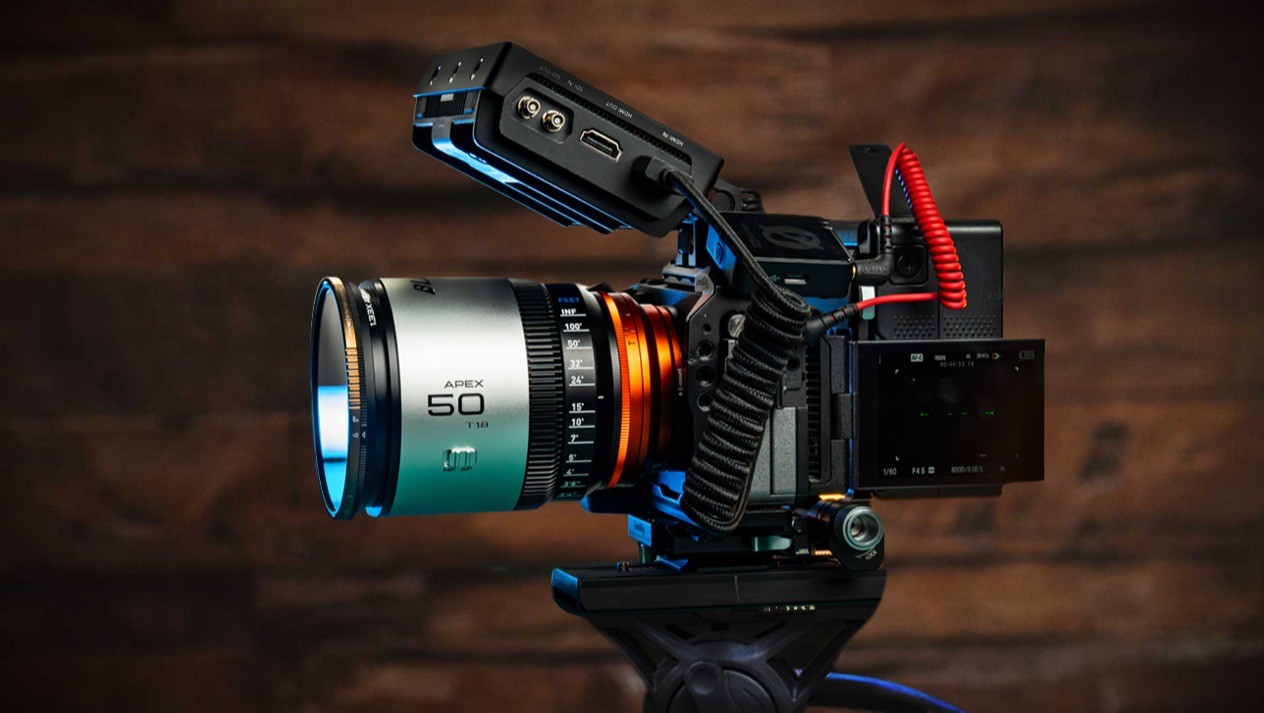

This rig is built around the Sony FX3 which particularly excels in video while also taking great photos. It's a full-frame camera with a 12.1 megapixel sensor and can capture 4K video at 120 frames-per-second or full HD at 240 frames-per-second.

Each component in this build supports professional‑level video creation for any purpose.

1. Sony FX3

The Sony FX3 is a compact cinema camera designed for controlled, high‑quality recording in a portable body. It uses a full‑frame sensor that allows for strong low‑light performance and a wide dynamic range, helping preserve detail in both bright and dark areas. Its magnesium-alloy construction and enhanced weather-resistance make it more durable than typical compact bodies.

The FX3 includes built‑in mounting points and active cooling, which helps maintain performance during extended shoots. The top handle audio interface provides professional‑grade audio inputs without requiring external modules. The FX3’s autofocus system includes subject tracking and eye detection, giving the operator precise control over focus during movement or complex scenes.

The camera has two memory card slots, which are versatile and support both high-speed CFexpress Type A cards and standard SDXC/SDHC (UHS-II or UHS-I) cards, allowing for backup, relay recording, or separate file types.

2. BLAZAR LENS 50mm T1.8 APEX 1.33x Anamorphic AF Lens (E‑Mount)

This 50mm anamorphic lens introduces a 1.33x horizontal squeeze, which expands the horizontal field of view and produces the widescreen aspect ratio associated with cinematic imagery. The anamorphic design also creates distinct horizontal lens flares and oval‑shaped background blur.

With a T1.8 aperture, the lens allows a large amount of light to reach the sensor. A T‑stop measures the actual transmitted light, so a lower number like T1.8 means brighter exposure possibilities and shallower depth of field. Its autofocus capability, uncommon for anamorphic lenses, makes it easier to maintain sharp focus while moving or reframing.

3. PolarPro Peter McKinnon Signature Edition II Variable ND Filter (77mm, 2–5 Stop)

This adjustable neutral‑density filter reduces the amount of light entering the lens by 2 to 5 stops. A “stop” refers to a doubling or halving of light, so this range gives control over exposure without changing aperture or shutter speed.

The filter rotates smoothly, allowing fine‑tuned exposure control in bright environments. Its optical glass and coated elements help maintain image sharpness and color accuracy.

4. Lexar 256GB Professional 1667x UHS‑II SDXC Memory Card

This SDXC card provides 256GB of storage with UHS‑II architecture, which uses a second row of pins to increase communication speed. Faster write performance supports high‑bitrate 4K and slow‑motion recording. Faster read speeds reduce transfer time when offloading footage to a computer.

5. SmallRig VB99 Mini V‑Mount Battery (99Wh)

The VB99 is a compact 99 watt‑hour V‑mount battery designed to supply power to the camera and other components. It includes multiple output options such as D‑Tap, USB‑C, USB‑A, and DC outputs, allowing several devices to be powered simultaneously.

Its 99Wh capacity keeps it airline‑travel compliant while still offering long runtimes on set. A built-in color display provides real-time battery information, and the reinforced housing offers added durability while maintaining a compact form factor for lightweight rig builds.

6. Sony NP‑FZ100 Rechargeable Lithium‑Ion Battery (2280mAh)

The NP‑FZ100 offers long‑lasting power with a high 2280mAh capacity. It's compact enough to carry spares without adding too much bulk, making it a practical choice for mobile or handheld shooting.

7. SmallRig NP‑FZ100 Camera Battery Charger

This dedicated charger allows fast charging of NP‑FZ100 batteries and includes LED indicators for charge status. It ensures batteries can be cycled quickly during long shoots and keeps the rig powered without relying on USB‑only charging through the camera.

8. RØDE Wireless GO II Digital Wireless Microphone System

This two‑person wireless system includes two transmitters and a receiver for capturing dialogue from multiple subjects. It uses 2.4GHz digital transmission and supports onboard recording for redundancy. The compact size makes it practical for handheld setups, interviews, or walk‑and‑talk filming.

This system serves as an alternative to the Sony ECM‑B1M, providing flexible wireless recording with dual subjects.

9. RØDE SC2 Right-Angle 3.5mm TRS Coiled Patch Cable

This patch cable supports audio connection between the microphone system and the camera. Its coiled design minimizes slack and prevents snagging during use.

10. Blackmagic Design Video Assist 5" 12G‑SDI/HDMI HDR Recording Monitor

This monitor functions as both an external display and an external recorder. The 5‑inch HDR touchscreen provides high brightness for viewing in challenging lighting conditions and includes advanced exposure tools such as waveforms, histograms, and focus assist.

Its 12G‑SDI and HDMI inputs support a wide range of cameras and allow recording in formats like ProRes and DNx, depending on workflow requirements.

11. CAMVATE D‑Tap to DC Barrel Coiled Cable

This cable transfers power from the V‑mount battery’s D‑Tap output to the monitor's DC input. The coiled design minimizes slack.

12. SmallRig 4183B Camera Cage for Sony FX30 and FX3

This camera cage surrounds the body with a rigid, form‑fitting frame that adds multiple mounting points including 1/4"-20 threads, 3/8"-16 mounts with ARRI‑style locating pins, and cold shoes. It protects the camera and serves as the structural foundation for components such as handles, microphones, and external monitors.

13. Benro QR13 Quick Release Plate

This metal plate attaches to the base of the camera or cage and allows quick mounting and removal from compatible tripod heads. It features a rubberized surface for improved grip between the camera and plate. The alignment helps ensure a stable connection during movement.

14. SmallRig V‑Mount Battery Plate

This plate mounts the V‑mount battery to the cage, providing a secure locking mechanism for it. It includes power output ports and mounting holes for flexible positioning. The plate helps manage cable routing and balances the rig’s weight distribution.

15. SmallRig Swivel and Tilt Adjustable Monitor Mount with ARRI‑Style Mount

This monitor mount uses ARRI‑style locating pins to prevent twisting and ensures a stable connection. It tilts and swivels, allowing the operator to position the monitor at angles suitable for handheld, tripod, or overhead setups. The mount supports small to medium‑sized monitors securely.

16. Peak Design Everyday Backpack V2 30L

This backpack provides structured storage for cameras, lenses, accessories, and personal items. The 30‑liter capacity offers room for full rig kits, and the internal dividers allow custom layout configurations. External access points and weather‑resistant materials make it suitable for travel and location work.

17. Kondor Blue Coiled Right‑Angle High‑Speed HDMI Cable (12–24")

This high‑speed HDMI cable supports stable transmission of high‑resolution video signals. The right‑angle connectors help reduce port strain, especially in tight rig setups. The coiled section expands from 12 to 24 inches, keeping cable management controlled and preventing unnecessary slack while maintaining full flexibility.

Credit

Thanks to Logan Glover (rigdesigner.com/loganglover) for his contributions to this guide!
